The NonGC heap

First, what are we even talking about? The GC allows managed objects to be allocated in segments of unmanaged memory known as frozen segments. Together, these frozen segments form the NonGC heap.

What’s the point? The NonGC heap is intended to store objects that are immortal and don’t reference other objects (or at least, don’t reference non-immortal objects). Scanning those objects during garbage collection would be a waste of resources, as they can’t be collected and they don’t keep other objects alive. The NonGC heap is the way to tell the GC to ignore them.

Since .NET 8, the JIT is aware of the NonGC heap, and takes advantage of it to implement some optimizations. For instance, string literals are stored in the NonGC heap, which allows the JIT to directly embed the address of those objects in the assembly code when compiling a function, skipping a layer of indirection. A few examples are given in the official documentation.

Frozen segments and the GC

The GC API declares a few functions that the GC must implement to handle frozen segments: RegisterFrozenSegment, UnregisterFrozenSegment, UpdateFrozenSegment, and IsInFrozenSegment. RegisterFrozenSegment and UnregisterFrozenSegment are self-explanatory. UpdateFrozenSegment is used to tell the GC which portion of the frozen segment is currently filled with objects. IsInFrozenSegment is mostly called by the JIT to determine whether a given object is managed by the GC.

When I first implemented my GC, I wrote a very basic implementation of those methods:

partial class GCHeap
{
    private readonly ConcurrentDictionary<nint, StrongBox<(nint start, nint end)>> _frozenSegments = new();
    private int _frozenSegmentIndex;

    public unsafe nint RegisterFrozenSegment(segment_info* pseginfo)
    {
        var handle = Interlocked.Increment(ref _frozenSegmentIndex);
        _frozenSegments.TryAdd(handle, new((pseginfo->pvMem + pseginfo->ibFirstObject, pseginfo->pvMem + pseginfo->ibAllocated)));

        return handle;
    }

    public void UnregisterFrozenSegment(nint seg)
    {
        _frozenSegments.TryRemove(seg, out _);
    }

    public unsafe bool IsInFrozenSegment(GCObject* obj)
    {
        foreach (var segment in _frozenSegments.Values)
        {
            if ((nint)obj >= segment.Value.start && (nint)obj < segment.Value.end)
            {
                return true;
            }
        }

        return false;
    }

    public void UpdateFrozenSegment(nint seg, nint allocated, nint committed)
    {
        if (_frozenSegments.TryGetValue(seg, out var segment))
        {
            segment.Value.end = allocated;
        }
    }
}

It keeps track of the frozen segments in a ConcurrentDictionary, just to be able to answer to whoever calls IsInFrozenSegment. Nothing else. After all, isn’t the whole point of the frozen segments that the GC would ignore them? It felt very odd to me at that time: can’t the runtime do this by itself? What’s the point of delegating this bookkeeping to the GC?

However, I later discovered that this simple program crashed:

string str = "Hello";

InnerFunction(str);

static void InnerFunction(object obj)
{
    GC.Collect();
    Console.WriteLine(obj is string);
}

Why is that?

To understand, let’s recap how our GC works. During mark phase, we enumerate the roots and walk the reference tree to discover all the objects that are reachable. When we find an object, we mark it by setting the least-significant bit of the method-table pointer to 1. Later, during the sweep phase, we walk the heap and, for each object:

• If the object is not marked, consider it as free space
• If the object is marked, unmark it, to restore its original method-table pointer

It sounds like it should work, and it did during my initial tests. However, let’s consider what happens in the previous example:

• Hello is a string literal, it’s allocated by the runtime in a frozen segment
• A reference to that string literal is given to the InnerFunction method
• Inside InnerFunction, a garbage collection is triggered
• During mark phase, the GC enumerates the roots and finds obj. It marks the object in the frozen segment, thus altering its method-table pointer
• During sweep phase, the GC walks the heap and unmarks all objects that are still alive. However, the string literal lives outside of the managed heap, so the GC doesn’t find it during the walk
• The garbage collection ends and the runtime execution resumes. obj is string checks the method-table of the object, and triggers the crash because the method-table pointer is invalid

That’s bad. How can we fix that? A straightforward way is to walk the frozen segments, in addition to the managed heap, at the end of the sweep phase to unmark the objects:

private void UnmarkFrozenSegments()
{
   foreach (var segment in _frozenSegments.Values)
   {
       foreach (var obj in WalkHeapObjects(segment.Value.start, segment.Value.end))
       {
           var o = (GCObject*)obj;
           o->Unmark();
       }
   }
}

With this simple fix, the program stops crashing. However, it means that the GC has to walk the frozen segments just like “normal” managed segments, which defeats some of their purpose. On paper, one of the main benefits of frozen segments was precisely that the GC could ignore them. Can we do better?

If we don’t want to have to unmark the objects in the frozen segments, then we shouldn’t mark them to begin with. We could tweak the mark phase with an additional check:

private void ScanRoots(GCObject* obj, ScanContext* context, GcCallFlags flags)
{
    // ... (cut for brevity)

    _markStack.Push((IntPtr)obj);

    while (_markStack.Count > 0)
    {
        var ptr = _markStack.Pop();
        var o = (GCObject*)ptr;

        if (o->IsMarked())
        {
            continue;
        }

        // Only mark the object if it's in the managed heap
        if (!IsInFrozenSegment(o))
        {
          o->EnumerateObjectReferences(_markStack.Push);
          o->Mark();
        }
    }
}

While that would work in theory, this is a bad trade-off: IsInFrozenSegment enumerates all the frozen segments to determine whether the given address belongs to one of them. This is way too expensive to be called on every referenced object. We could lower the complexity to O(log n) by using interval trees, but that’s still too much. Alternatively, we could use bitmaps like described in the previous article to find out if a given address belongs to a frozen segment in O(1) time. But because frozen segments are not managed by the GC, they could be allocated anywhere in memory and be of any size. So our bitmap would have to map the entire address space, wasting a lot of memory.

Or we could flip the problem around.

What if I had infinite memory?

As I just mentioned, knowing if an address belongs to a frozen segment is a difficult problem to solve (in an efficient way) because we don’t control where frozen segments are allocated. However, we do have complete control over where managed segments are allocated, so instead of answering the question “does it belong to a frozen segment?”, we can focus on the question “does it not belong to a managed segment?”.

To understand where we’re going, we must first recall some basic concepts about memory management. Have you ever tried checking how much memory a simple .NET console app uses?

Console.WriteLine("Hello, World!");

var currentProcess = System.Diagnostics.Process.GetCurrentProcess();

Console.WriteLine($"Private memory: {currentProcess.PrivateMemorySize64 / 1024 / 1024} MB");
Console.WriteLine($"Virtual memory: {currentProcess.VirtualMemorySize64 / 1024 / 1024} MB");

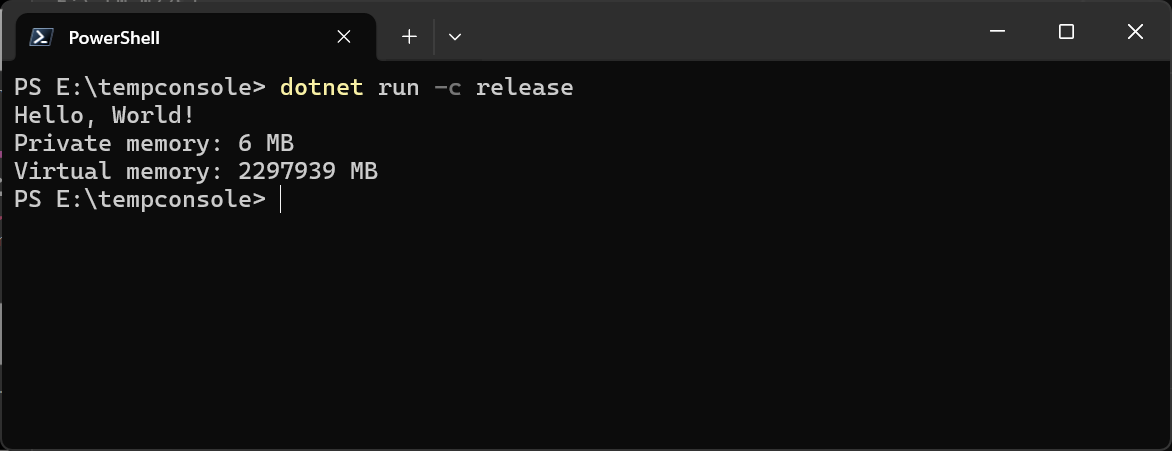

6 MB of private memory, that’s probably a lot for a simple Hello World, but not so bad for a managed language. And virtual memory is… Wait… How many digits is that? What do you mean 2,297,939 MB?

Of course there is a trick, and the trick is that it’s all reserved memory.

As you probably know, on a modern OS (modern as in anything since at least the mid 90s), each process gets its own address space. If process A writes a value to the address 0x1000, process B will see a completely different value. Each process is given access to virtual memory, and the OS is in charge of mapping it to real, physical memory, as needed. It works in two phases:

• First, the process reserves some memory. It tells the OS: “I plan to use the memory in that range”. At that point, the OS isn’t doing much, just noting that information in whatever bookkeeping structure it uses internally
• Then, the process commits memory. At that point, it wants to write actual data to the reserved memory, so the OS has to map the range to actual physical memory.

This is what we see in our console application: it has reserved 2 TB (virtual memory), but committed only 6 MB (private memory). Why reserve so much memory if it’s going to use only a tiny fraction of it? Well, precisely to solve the problem that we mentioned earlier.

On 64-bit, the address space is huge, practically infinite when compared to what applications actually require. This is convenient because infinity minus a big chunk is still infinity. The trick is therefore to reserve a huge chunk of memory upfront, big enough to cover the needs of any reasonably sized app. Then we commit some of that memory when we actually use it. This way, we get the guarantee that all the managed memory sits within a well-defined address range, and conversely that anything outside of that range is unmanaged memory.

With this strategy, checking if an object might belong to a frozen segment becomes a simple test against a lower and higher bound. Of course, it only works on 64-bit. On 32-bit, the address space is just 4 GB, and some of it must be saved for native allocations. In the .NET garbage collector, there is a surprising amount of complexity just in the code implementing the strategy to reserve memory. The GC tries its hardest to keep all its allocations in a contiguous chunk of reserved memory, but has many fallbacks in case it fails, and in the worst case it will revert to walking frozen segments to unmark objects at the end of the garbage collection, like described in the previous part. For this custom GC, we’re not going to bother with any of that, and from that point onwards this GC will officially only support 64-bit runtimes.

The new allocation strategy

Enough talk, it’s time to implement the new allocation strategy. Until now, our GC has relied on NativeMemory.Alloc. Internally, it is bound to the C malloc API, so there was a big risk that our allocations would be interleaved with native allocations from other components. We’re going to replace it with our own NativeAllocator. It works by immediately reserving 2 TB of memory, then committing chunks of it on demand to satisfy allocations. Both operations use the Windows VirtualAlloc API (or mmap on Linux). If we exhaust the whole 2 TB, we should in theory degrade to a “fragmented address space” mode, but for this pet project I’m not going to bother: 2 TB ought to be enough for anybody.

In the constructor, we immediately reserve the memory, which gives us the lower and upper bounds within which all managed memory will live:

internal partial class NativeAllocator : IDisposable
{
    private const uint MEM_COMMIT = 0x00001000;
    private const uint MEM_RESERVE = 0x00002000;
    private const uint MEM_DECOMMIT = 0x00004000;
    private const uint MEM_RELEASE = 0x00008000;

    private const uint PAGE_READWRITE = 0x04;

    public NativeAllocator(long size)
    {
        _lowestAddress = VirtualAlloc(IntPtr.Zero, (UIntPtr)size, MEM_RESERVE, PAGE_READWRITE);

        if (_lowestAddress == IntPtr.Zero)
        {
            throw new OutOfMemoryException("Failed to reserve memory");
        }

        _highestAddress = _lowestAddress + (nint)size;
        _nextFreeAddress = _lowestAddress;
    }

    public nint LowestAddress => _lowestAddress;
    public nint HighestAddress => _highestAddress;

    public void Dispose()
    {
        if (_lowestAddress != IntPtr.Zero)
        {
            VirtualFree(_lowestAddress, UIntPtr.Zero, MEM_RELEASE);
            _lowestAddress = IntPtr.Zero;
            _highestAddress = IntPtr.Zero;
        }
    }
}

The allocation code is slightly more involved, for two reasons: it needs to be thread-safe, and we can only commit multiples of the OS page size:

private static readonly int PageSize = Environment.SystemPageSize;

public nint Allocate(nint size)
{
    if (size <= 0)
    {
        return IntPtr.Zero;
    }

    var alignedSize = (size + (PageSize - 1)) & ~(nint)(PageSize - 1);
    nint address;

    while (true)
    {
        address = Volatile.Read(ref _nextFreeAddress);
        var end = address + alignedSize;

        if (end > HighestAddress)
        {
            throw new OutOfMemoryException("Not enough memory to allocate");
        }

        if (Interlocked.CompareExchange(ref _nextFreeAddress, end, address) == address)
        {
            break;
        }
    }

    var result = VirtualAlloc(address, (UIntPtr)alignedSize, MEM_COMMIT, PAGE_READWRITE);

    if (result == IntPtr.Zero)
    {
        throw new OutOfMemoryException("VirtualAlloc failed to commit memory");
    }

    return address;
}

Freeing memory is simpler (at least for now):

public void Free(nint address, nint size)
{
    if (address == IntPtr.Zero || _lowestAddress == IntPtr.Zero)
    {
        return;
    }

    if (address < _lowestAddress || address >= _highestAddress)
    {
        throw new InvalidOperationException($"Address {address:x2} is out of reserved range");
    }

    var alignedSize = (size + (PageSize - 1)) & ~(nint)(PageSize - 1);

    if (!VirtualFree(address, (UIntPtr)alignedSize, MEM_DECOMMIT))
    {
        throw new InvalidOperationException("VirtualFree failed to decommit memory");
    }
}

That’s it! We can now expose an API that checks if an address is within the range owned by the NativeAllocator:

public bool IsInRange(nint ptr) => ptr >= LowestAddress && ptr < HighestAddress;

And we can plug it directly into the mark phase. It’s cheap enough to be called for each object:

private void ScanRoots(GCObject* obj, ScanContext* context, GcCallFlags flags)
{
    // ... (cut for brevity)

    _markStack.Push((IntPtr)obj);

    while (_markStack.Count > 0)
    {
        var ptr = _markStack.Pop();
        var o = (GCObject*)ptr;

        if (o->IsMarked())
        {
            continue;
        }

        // Only mark the object if it's in the managed heap
        if (_nativeAllocator.IsInRange((nint)o))
        {
          o->EnumerateObjectReferences(_markStack.Push);
          o->Mark();
        }
    }
}

Thanks to this, we don’t have to walk the frozen segments to unmark the objects at the end of the garbage collection, because we never mark those objects to begin with.

Of course, our allocator is very simple for now because this GC never reuses freed address ranges. Once we start reclaiming and reusing space, we must switch to a fully-featured allocator, with a free-list to keep track of free chunks of memory, and size buckets to prevent fragmentation. Reimplementing malloc, basically.
